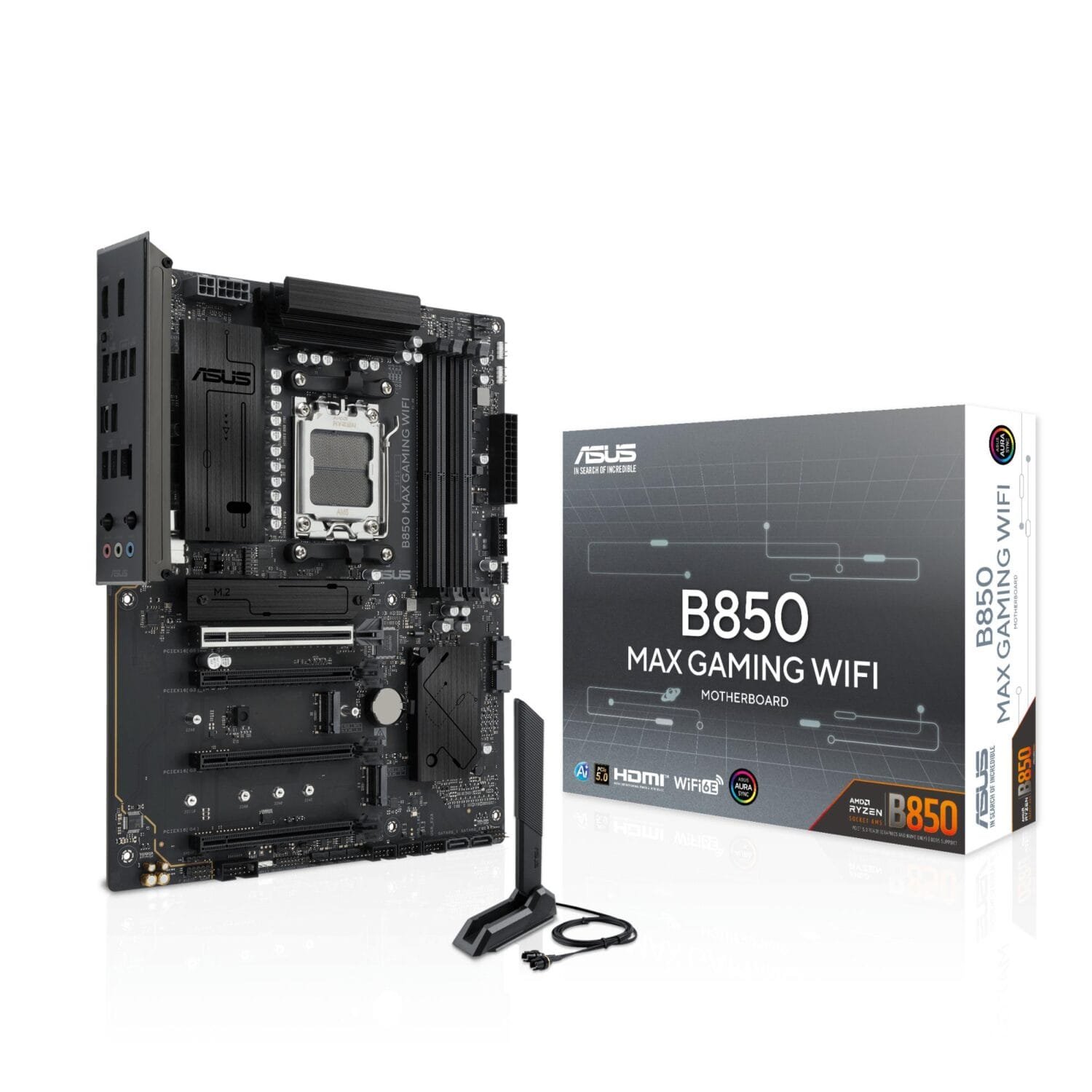

ASUS B850 MAX GAMING WIFI

Description: <p>B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.</p>
Summary: ASUS B850 MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/others/b850-max-gaming-wifi/
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.275
Unit Box Width: 0.355
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: ATX
Power source type: ATX
Product colour: Black
Windows operating systems supported: Windows 10 x64, Windows 11
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9000 MHz
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of COM connectors: 1
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
Number of water pump connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
RGB LED pin header: Yes
S/PDIF out connector: Yes
Thunderbolt headers: 1
TPM connector: Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
BIOS flashback button: Yes
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Package depth: 273 mm
Package height: 68 mm
Package weight: 1.26 kg
Package width: 353 mm
Depth: 244 mm
Height: 48 mm
Width: 305 mm
Antenna included: Yes
Cables included: SATA
Screws included: Yes
Weight: 1.05 kg
Units per Shipping Box: 5
Unit Calculated Volume: 0.008214
Unit Calculated Weight: 1.8
