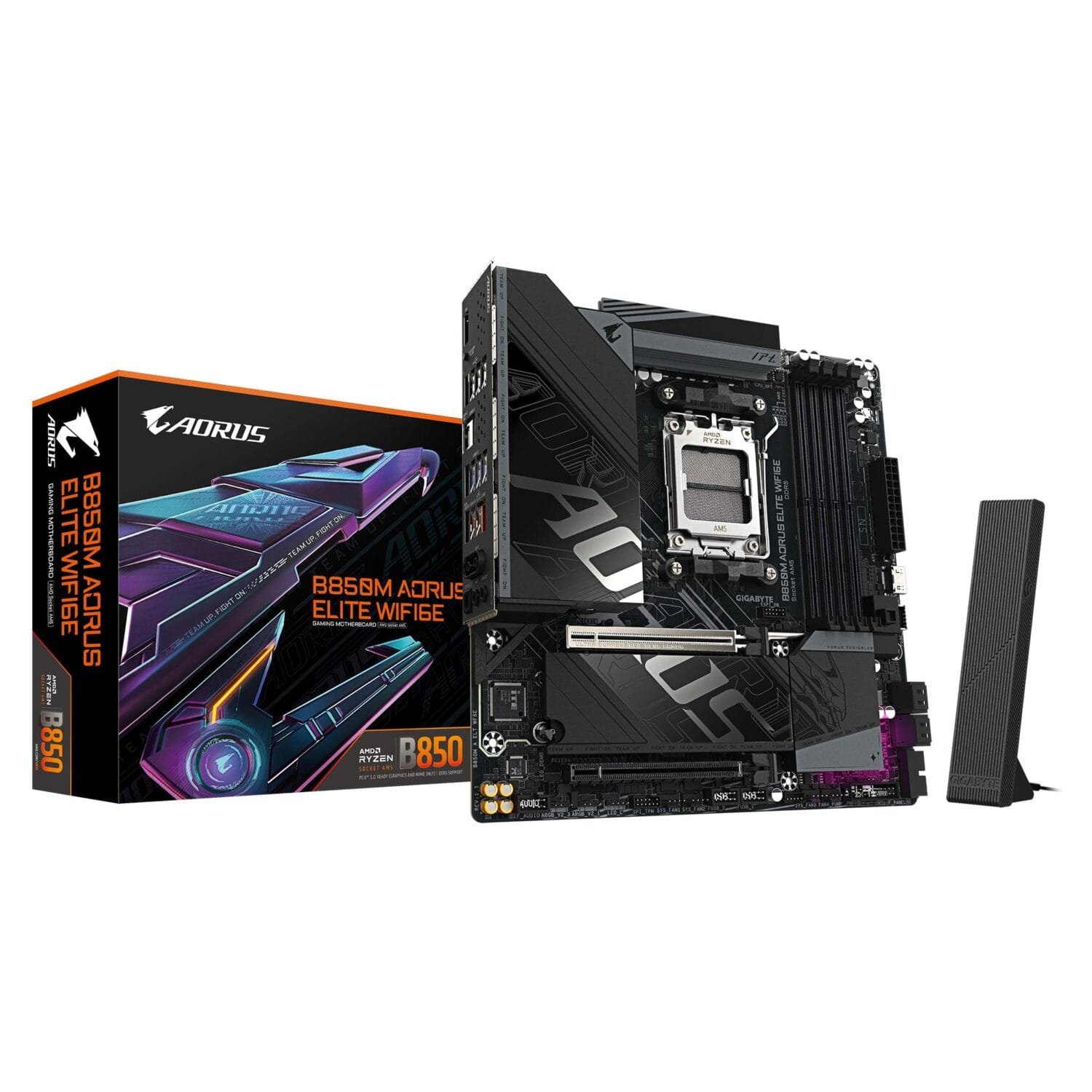

GIGABYTE B850M AORUS ELITE WIFI 6E (rev. 1.x)

Description: <p>GIGABYTE B850M AORUS ELITE WIFI6E<br />
<br />
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge</p><p><ul>
<li>X3D Turbo Mode : Unleash new era gaming performance</li>
<li>DDR5 OC up to 8200MT/s</li>
<li>AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors</li>
<li>Digital twin 12+2+2 phases VRM solution</li>
<li>Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support</li>
<li>WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation</li>
<li>EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design</li>
<li>EZ-Latch Click : M.2 heatsinks with screwless design</li>
<li>Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup</li>
<li>Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.</li>
<li>Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4</li>
<li>Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.</li>
<li>Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna</li>
<li>Extended Connectivity : HDMI,Displayport</li>
<li>PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect</li>
</ul>
</p>
Summary: GIGABYTE B850M AORUS ELITE WIFI6E Motherboard – AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-rev-1x
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.27
Unit Box Width: 0.27
Audio chip: Realtek ALC1220-VB
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Black
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: Non-ECC
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of water pump connectors: 2
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Digital audio optical out: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 1.4
Headphone outputs: 1
Line-in: Yes
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: Realtek RTL8852CE
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.97 kg
Package width: 270 mm
Products per shipping (inner) case: 1 pc(s)
Depth: 244 mm
Height: 35 mm
Width: 244 mm
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3 year(s)
Weight: 1.78 kg
Model: B850M AORUS ELITE WIFI6E (rev. 1.x)
Units per Shipping Box: 8
Unit Calculated Volume: 0.006549
Unit Calculated Weight: 1.96
