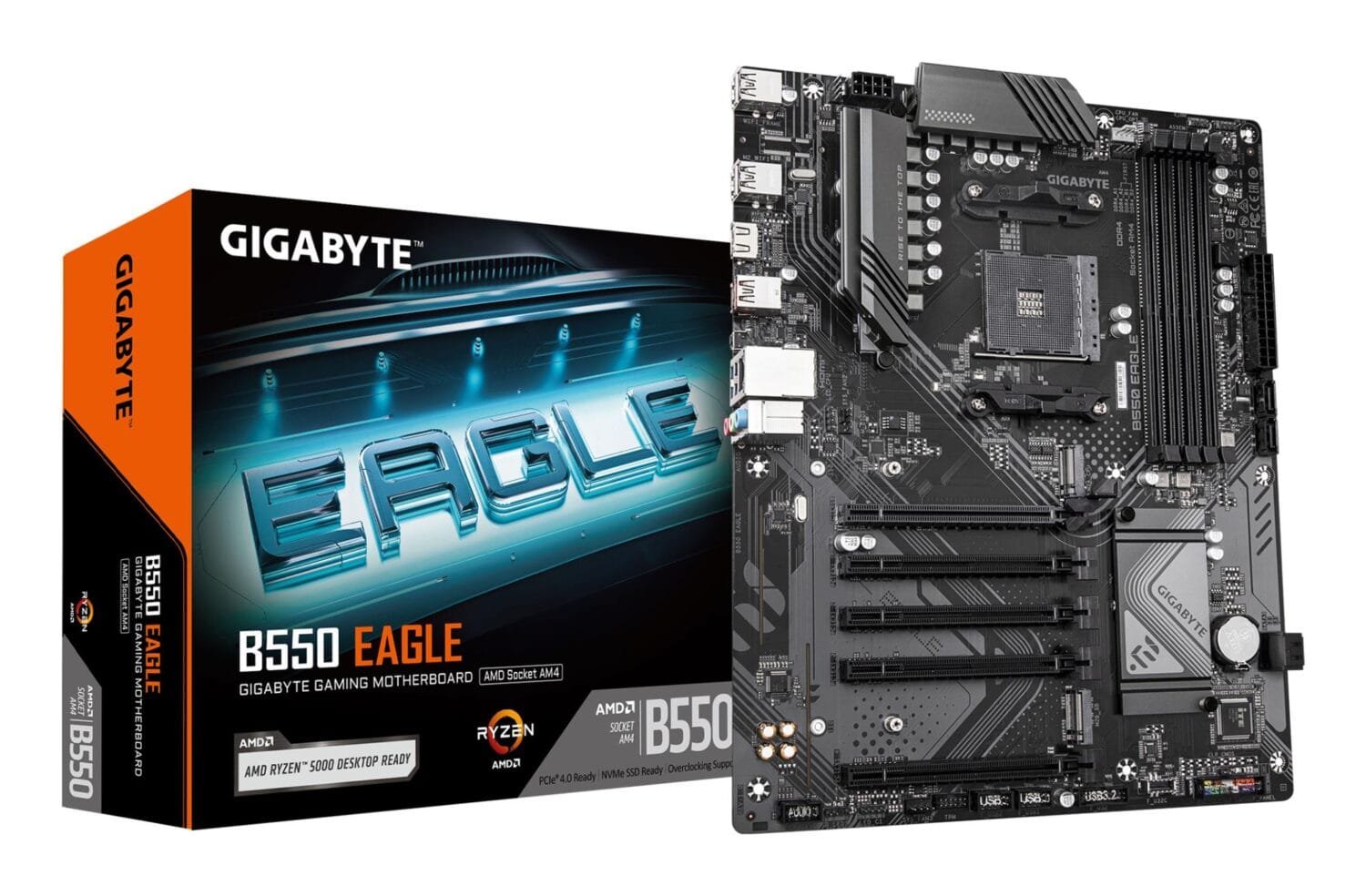

GIGABYTE B550 EAGLE

Description: <p>Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge</p><p><ul><li>AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors</li><li>Digital twin 10+3+1 phases VRM solution</li><li>Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support</li><li>EZ-Latch: PCIe slots with Quick Release Design</li><li>Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.</li><li>Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1</li><li>Efficient Thermal: VRM Thermal Armor Advanced</li><li>Fast Networking: GbE LAN</li><li>Extended Connectivity: HDMI, Displayport</li><li>PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect</li></ul></p>
Summary: GIGABYTE B550 EAGLE Motherboard – AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBA
Unit Box Height: 0.08
Unit Box Length: 0.335
Unit Box Width: 0.275
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Power source type: ATX
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Maximum internal memory per slot: 32 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 3200 MHz
Supported memory clock speeds: 3200,2933,2667,2400,2133 MHz
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0, 1, 10
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 3
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 5
Number of SATA III connectors: 4
Number of water pump connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 22110
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
ACPI version: 5.0
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.48 kg
Package width: 335 mm
Products per shipping (inner) case: 1 pc(s)
Depth: 244 mm
Height: 35 mm
Width: 305 mm
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3 year(s)
Weight: 1.25 kg
Model: B550 EAGLE
Units per Shipping Box: 8
Unit Calculated Volume: 0.01011
Unit Calculated Weight: 1.47
